Juki High Speed Single Needle - DDL-8100e

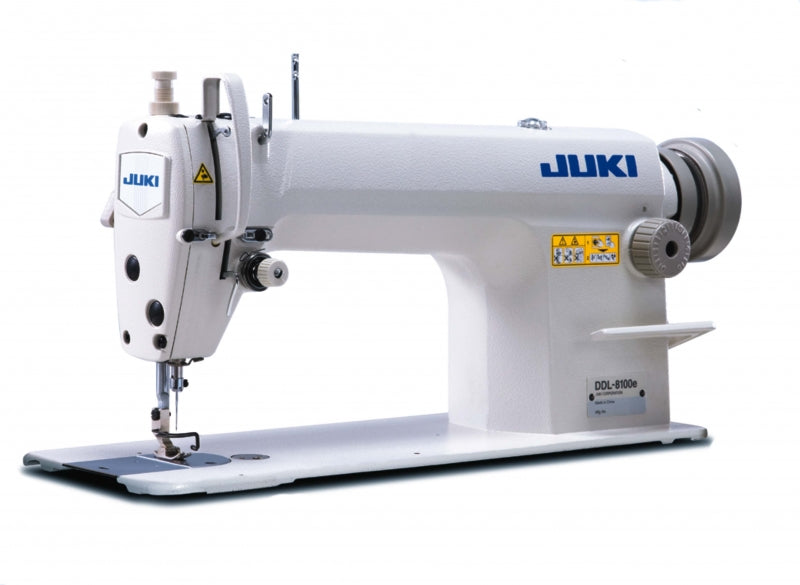

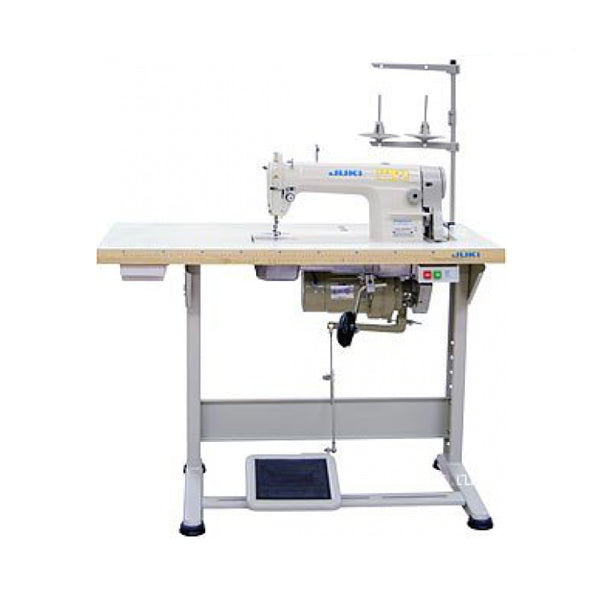

Juki DDL-8100e Industrial Straight Stitch Sewing Machine

The Juki DDL-8100e is a high-speed, single-needle, straight stitch industrial sewing machine engineered for consistent quality, low-tension sewing across various fabric types. Ideal for apparel manufacturing, tailoring, and production lines, it offers quiet, low-vibration operation and excellent durability.

Key Features:

• Smooth, stable operation with reduced noise and vibration

• Low-tension sewing for clean, consistent seams

• High presser foot lift (by hand: 5.5mm, by knee: up to 13mm)

• Ergonomic handwheel with deep recess for better grip

• Built-in mounting seats for optional attachments

• Hinge placement designed to prevent fabric snags

Technical Specifications:

• Max Sewing Speed: 5,500 stitches per minute

• Stitch Length: Max 5mm

• Needle System: DBx1 (#14 standard)

• Presser Foot Lift: 5.5mm (by hand), 13mm (by knee)

• Lubrication: Automatic

• Hook Type: Standard horizontal-axis rotary hook

• Lubricating Oil: Juki New Defrix Oil No.1 (equivalent to ISO VG7)

• Needle Bar Stroke: 30.7mm

• Dimensions (Head Only): Approx. 48cm x 18cm x 37cm

• Weight (Head Only): Approx. 28 kg

Applications:
Light- to medium-weight fabrics (shirts, dresses, uniforms, etc.)
